Description

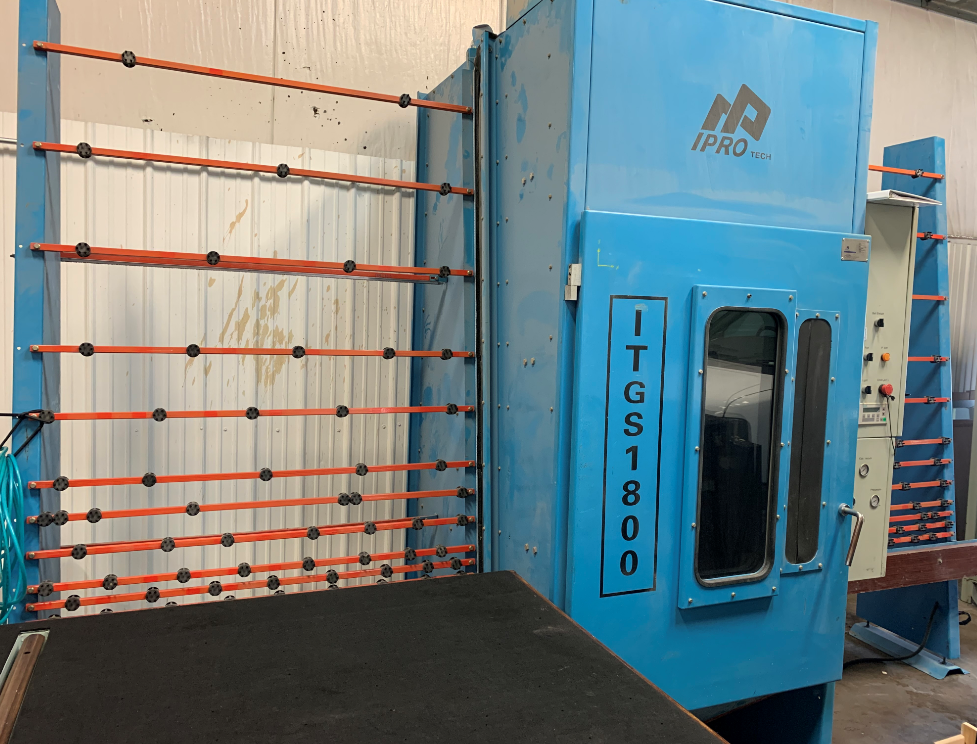

The ITGS1800 Sandblaster utilizes a PLC computer made by SIMENS (Germany) to control its

X&Y movements and sandblast density. The computer stores up to 9 different operating

programs. The operator can designate, on a given piece, if only a subset or the entire unit is to be

sandblasted. Within the same program, the operator can control the number of times the sprayer

passes over a given area and/or if the area should be sprayed by one or two guns. The program

also determines the speed and rate at which the glass advances. The ITGS1800 has a third

available sprayer that can be operated manually and the glass advance controlled by foot pedal.

The ITGS1800 comes with a closed filtration system to recalculate the aluminum oxide and

reduce waste.

Technical Information:

❑ Advance speed: 1m²=3-4min

❑ Maximum workable height: 1800mm (72”)

❑ Minimum workable glass dimension: 100X200mm

❑ Glass thickness range: 2-50mm

❑ Power: 5Kw

❑ Electrical requirements: 220V, 3Ph, 60Hz

❑ Required compressed air: 84-116 PSI (dry and clean air)

❑ Compressed air consumption: 2000 liters/min or 20hp

❑ Automatic sprayer guns: 2pc

❑ Manual sprayer guns: 1pc

❑ Aspirator delivery: 600m³/h

❑ Abrasive material: Aluminum Oxide

❑ Overall dimensions: 4100(L) X1450(W) X2250(H) mm

❑ Machine weight: 1700kg
