Description

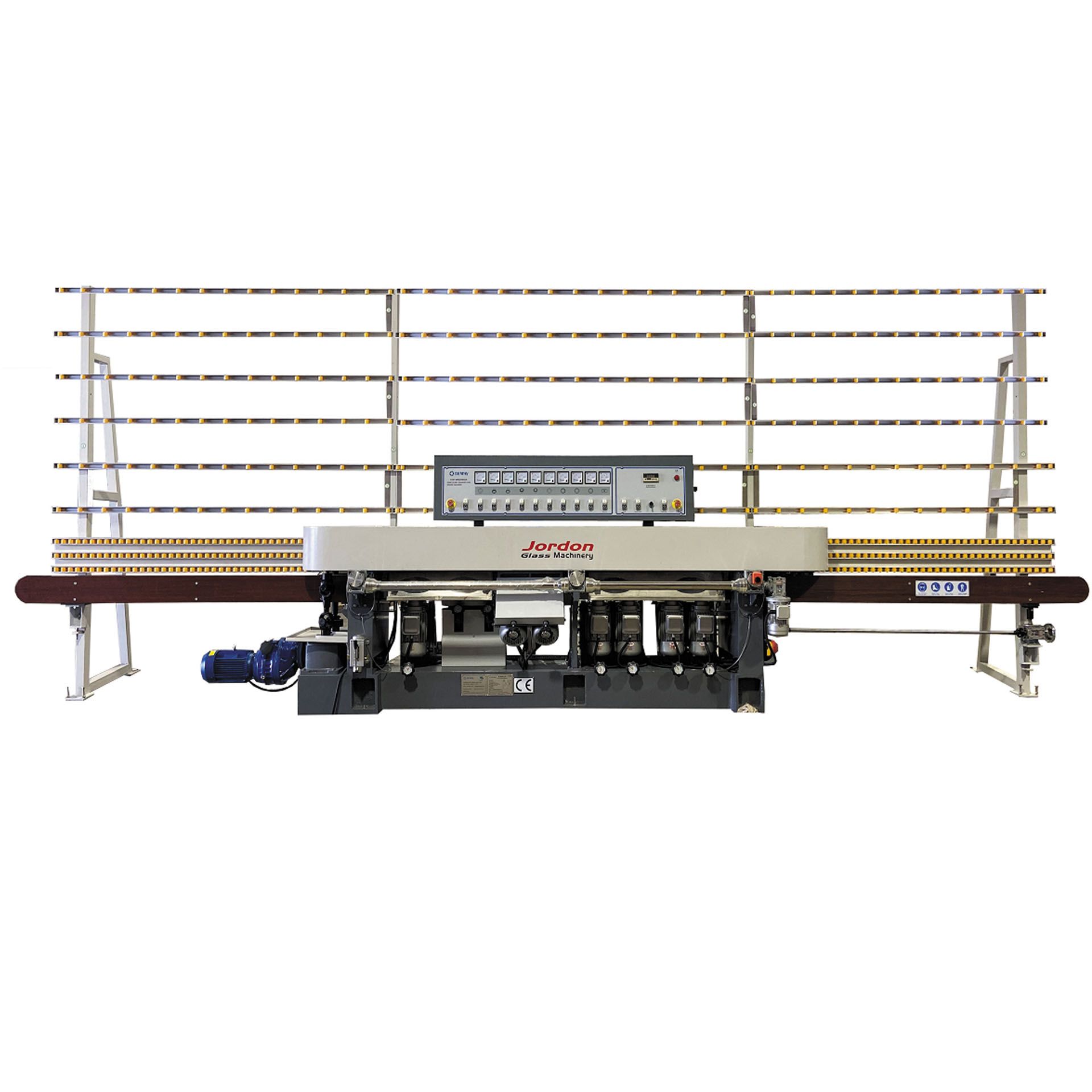

The 9-spindle DZM9 is a robust glass edger designed for high quality polishing. The machine operates 2 diamonds (1 coarse &1 fine), 1 resin, 1 Pre polishing wheel, 1 high polishing cerium wheel, 2 resin and 2 rubber polishing wheel combinations on the front and back for the 45° aris work. The DZM9 is simple to operate and maintain. Production speed is controlled via a motor variator. Glass thickness is selected through a toggle switch linked to a servomotor and a digital display; the aris wheels automatically adjust with each thickness selected. The entry arm is equipped with a precise and easy to use gear reduction box that enables the operator to lower or raise the input height of the arm. This is especially beneficial when controlling the desired amount of glass removal without having to adjust each spindle individually. The machine is delivered complete with wheels, stainless steel water and cerium tanks and pumps, plus all tools and instructions. 2- optional arm extensions measuring 1m (40”) long each are available and recommended when running extra large pieces. The DZM9 comes with a one-year parts warranty.
