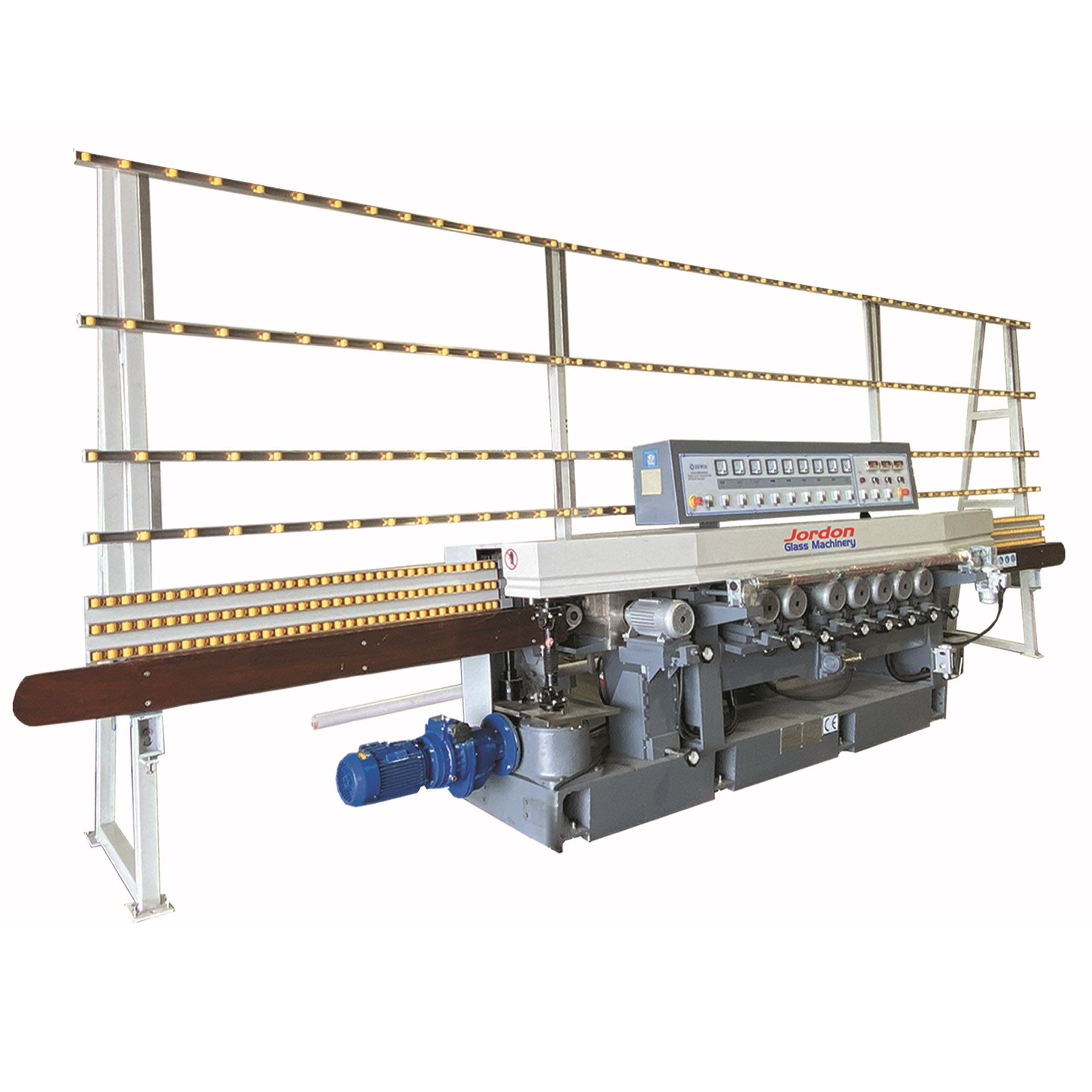

DXM251 – DB251D – Glass Beveler Bevelling Machine
The DXM251 is an easy to use 8-spindle straight-line beveling machine designed for glass beveling and bottom edging. Control parameters for glass thickness, bevel angle, and bevel width are entered via simple Digital controls. The DXM251 can bevel glass pieces measuring 5”X5” and can create a bevel up to 1 7/8” (45mm). The machine comes equipped with one bottom rounding wheel. The conveyor speed is controlled by a motor-variator transmission. The machine comes equipped with its full set of wheels, water and cerium tanks, hoses, racks, and spare electrical components. Power: AC 220V±10% 3ph 60HZ±2% Air relative humidity :< 90%
Description
The DXM251 is an easy to use 8-spindle straight-line beveling machine designed for glass beveling and bottom edging. Control parameters for glass thickness, bevel angle, and bevel width are entered via simple Digital controls. The DXM251 can bevel glass pieces measuring 5”X5” and can create a bevel up to 1 7/8” (45mm). The machine comes equipped with one bottom rounding wheel. The conveyor speed is controlled by a motor-variator transmission. The machine comes equipped with its full set of wheels, water and cerium tanks, hoses, racks, and spare electrical components. Power: AC 220V±10% 3ph 60HZ±2% Air relative humidity :< 90%
